Steel Formwork For Box Girder

For detailed information, please visit the Xinhui Xing factory from China to purchase steel formwork for box girders and T-beams. By integrating high-quality steel materials, advanced bridge construction technologies, and rapid installation concepts, we have developed a specialized formwork system tailored for box girder and T-beam construction, fully meeting the current demands for high precision, efficiency, and stability in large-scale bridge projects. The products can be flexibly customized according to the design dimensions and cross-sectional shapes of box girders and T-beams, accommodating both prefabrication and on-site casting construction methods.

What is a Steel Formwork For Box Girders?

Steel Formwork For Box Girders and T-Beams is a specialized reusable bridge formwork system designed for precast and cast-in-situ construction of large-span bridge structures. It is widely used in highways, railways, and municipal bridge projects. The system is engineered to ensure precise geometric shaping of box girders and T-beams while maintaining high strength, stability, and surface quality under heavy concrete pressure.

Professional Core Technologies and Design Advantages

Customized adaptation design: Precisely tailored to single-box single-chamber or multi-chamber box girders and T-beams. Formwork curvature, angles, and dimensional tolerance are controlled within ≤0.3mm, ensuring full alignment with bridge design drawings without secondary processing.

High-strength sealing splicing technology: Dual locking system with pins and bolts combined with heat-resistant sealing strips ensures tight joints and prevents slurry leakage, eliminating honeycombing, pitting, and surface defects during concrete casting.

High stiffness with lightweight optimization: Thickened Q355B steel plates with reinforced ribs provide strong resistance to lateral concrete pressure while maintaining reduced weight for easier lifting and installation in high-altitude bridge operations.

Modular quick-install system: Rapid locking mechanism enables assembly and disassembly efficiency improved by over 60% compared with traditional systems. Modular design supports flexible configuration for different bridge spans and structural types.

Span adaptability: Suitable for 25m–60m spans including both precast and cast-in-place methods, compatible with highways, railways, and large municipal bridge structures.

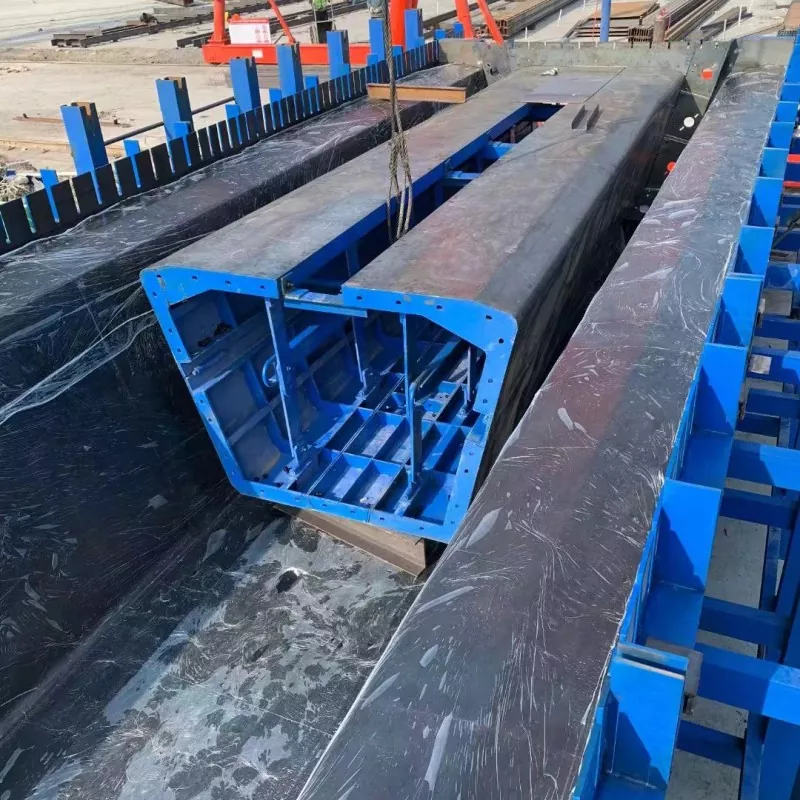

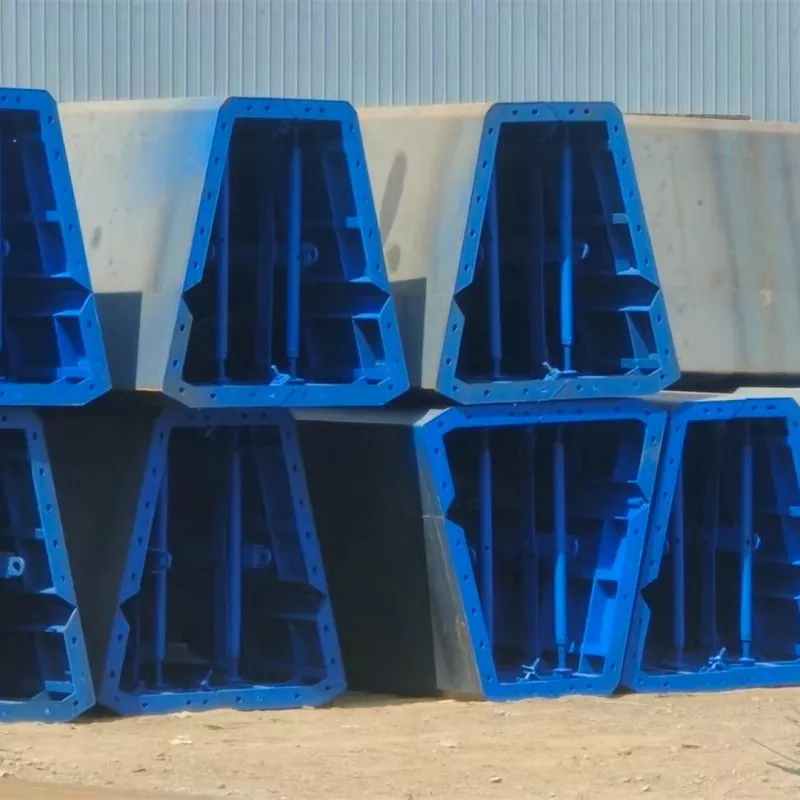

Complete system solution: Includes side forms, bottom forms, end forms, inner forms, support systems, tie systems, and lifting components, fully supporting prefabrication plant production and on-site construction.

Applications

Highway bridges: sea-crossing bridges, river-crossing bridges, large-span box girders and T-beams.

Railway bridges: high-speed rail box girders, large-span railway T-beams, precision structural components.

Municipal bridges: elevated bridges, overpasses, and urban transportation structures.

Prefabrication plants: batch production lines for standardized box girder and T-beam manufacturing.

Comparative Advantages

Compared with traditional bridge formwork systems, Xinhuixing Steel Formwork For Box Girders and T-Beams delivers higher precision, stronger load resistance, and significantly improved construction efficiency.

Installation efficiency increases by more than 60%, while concrete surface defect rate is significantly reduced, achieving up to 99.5% forming pass rate. Rework and repair workload is reduced by approximately 75%, improving both cost efficiency and construction quality.

The system also supports high-altitude construction safety and large-span structural stability, making it suitable for complex bridge engineering environments.

FAQ

Q1: What is Steel Formwork For Box Girders and T-Beams used for?
It is used for precast and cast-in-place construction of large bridge structures such as box girders and T-beams in highways, railways, and municipal bridge projects.

Q2: Can the formwork be customized for different bridge designs?
Yes. It can be fully customized according to design drawings, including span (25m–60m), chamber type, curvature, and cross-sectional shape.

Q3: Is it suitable for prefabrication plants?
Yes. The system is widely used in prefabrication plants for batch production of standardized bridge components with high efficiency and accuracy.

Q4: What is the service life of the formwork?
With proper maintenance, it can be reused 30–50 times or more depending on construction conditions.

Q5: How does it improve construction efficiency?
The modular quick-install system improves installation efficiency by over 60% and significantly reduces rework due to high forming precision.

Q6: Does it support both precast and cast-in-place methods?
Yes. It is compatible with both construction methods, making it suitable for a wide range of bridge engineering scenarios.
