Steel Formwork For Wind Turbine Foundation

Xinhuixing operates its own production factory as a professional China manufacturer, integrating R&D, production, sales, and export. If you are looking to purchase Steel Formwork For Wind Turbine Foundation, Xinhuixing provides factory-direct supply with full customization and one-stop foreign trade services. Our Steel Formwork For Wind Turbine Foundation made in China is not only a concrete forming system, but also a critical structural guarantee for the long-term stable operation of wind power projects. It is widely used in standardized wind farm foundation construction, delivering high precision, durability, and construction efficiency for global renewable energy projects.

Product Definition – Steel Formwork For Wind Turbine Foundation

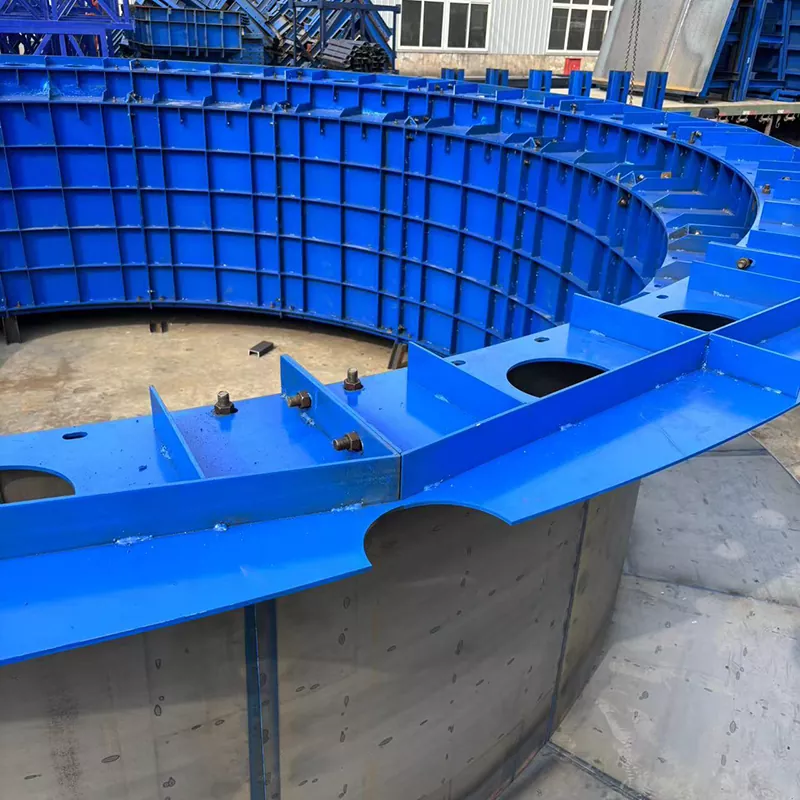

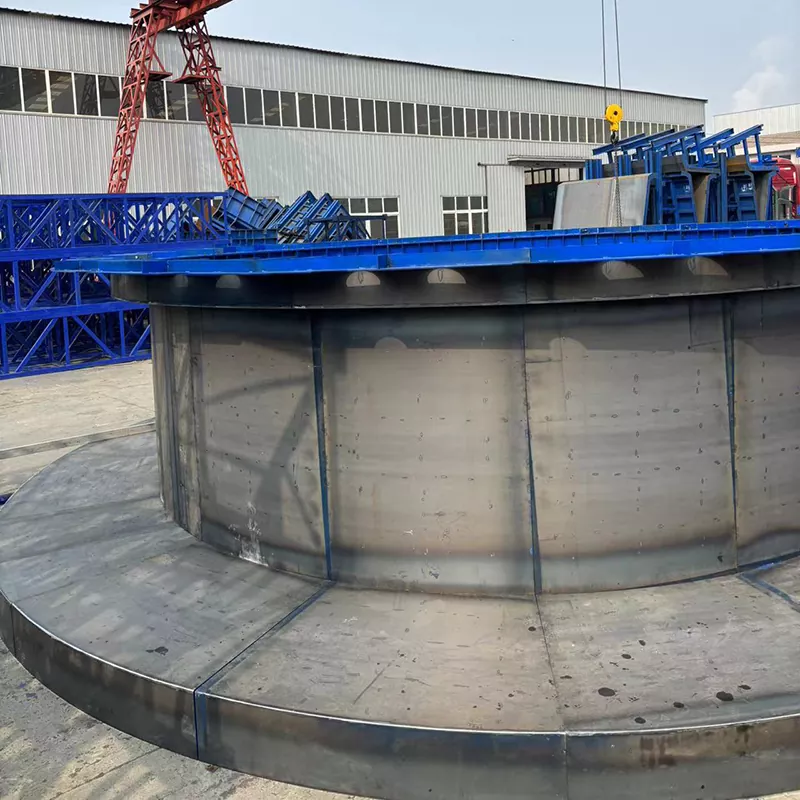

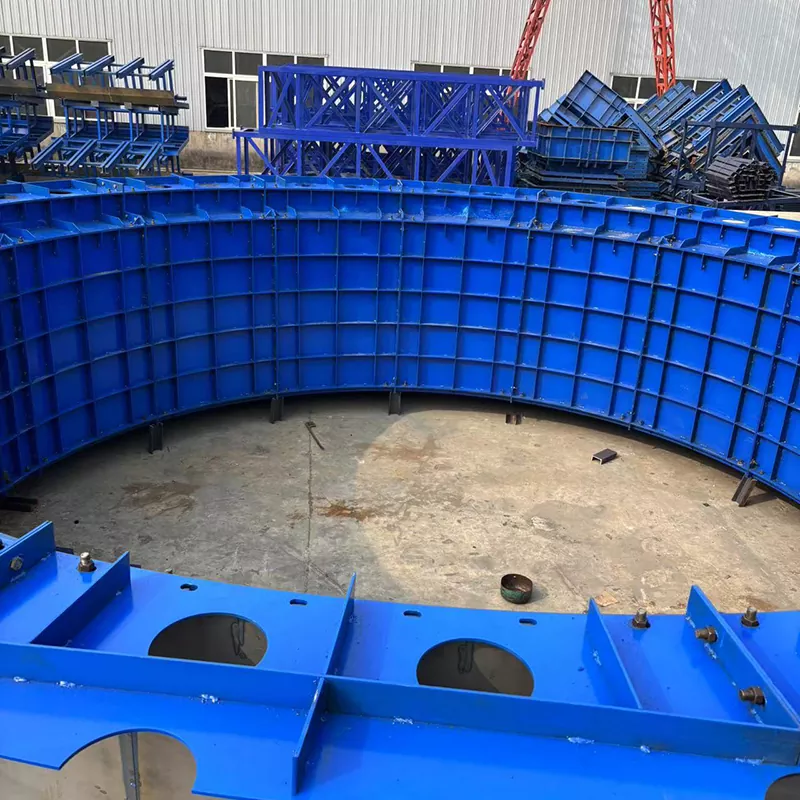

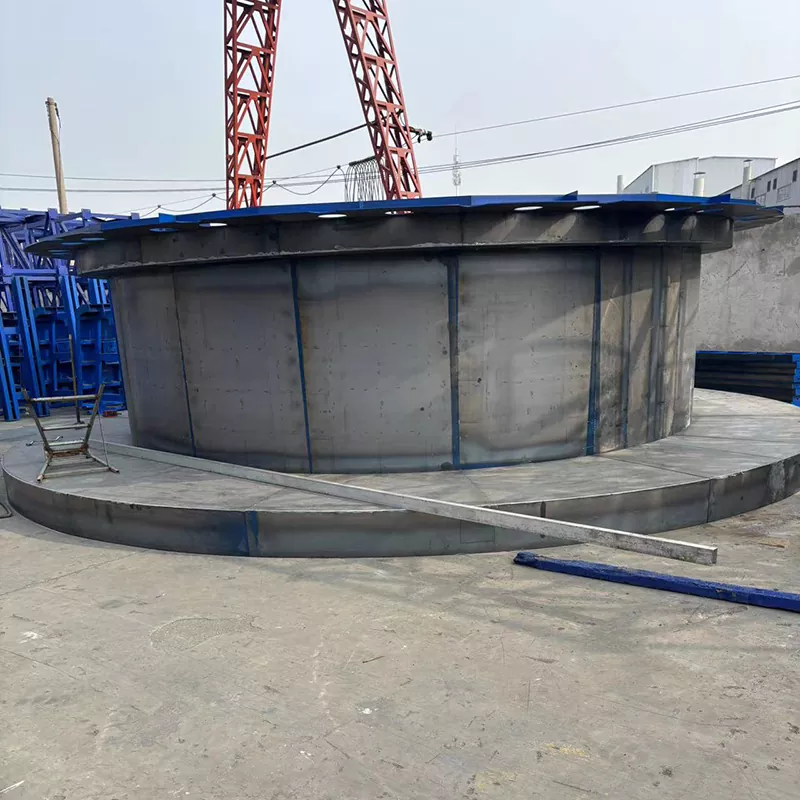

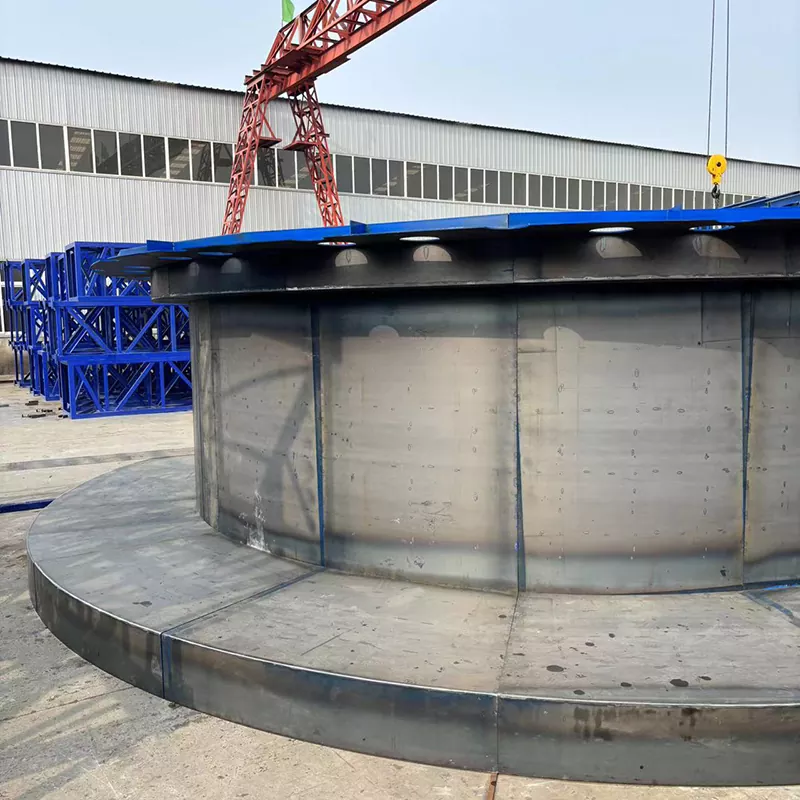

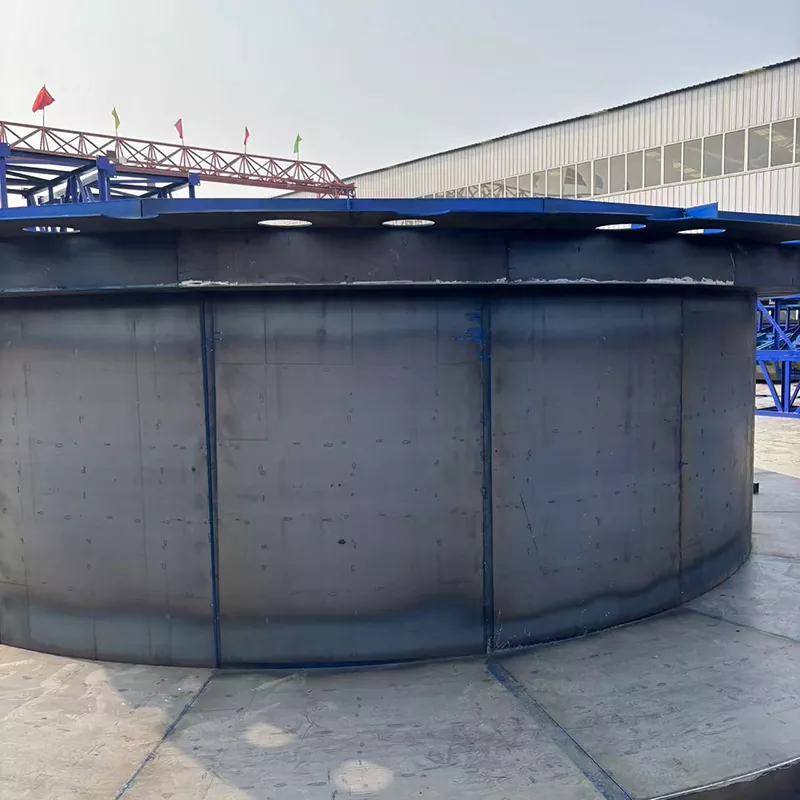

Steel Formwork For Wind Turbine Foundation is a high-strength reusable formwork system designed for casting large concrete foundations of wind turbines. It ensures precise shaping of circular or multi-geometry foundations, providing strong structural support under heavy concrete loads. The system is engineered for both onshore and offshore wind farm construction, supporting modern wind turbine installations ranging from 1.5 MW to 10 MW and above.

Core Features and Technical Advantages

1. Highly customized structural design: Supports circular, square, and octagonal foundations with diameters from 3–30 meters and heights from 1–5 meters. It adapts to different turbine models, geological conditions, and foundation types, including segmented curved designs for offshore wind farms.

2. High-strength material system: Uses Q355B low-alloy steel with 6–14mm thick panels and reinforced channel steel ribs. The structure withstands up to 200 MPa load pressure, effectively resisting deformation during high-strength concrete pouring.

3. Advanced anti-corrosion treatment: Surface treatment includes shot blasting, epoxy zinc-rich primer, and fluorocarbon coating, achieving C5 corrosion resistance grade. It ensures long-term stability in coastal, desert, and high-altitude environments for over 12 years.

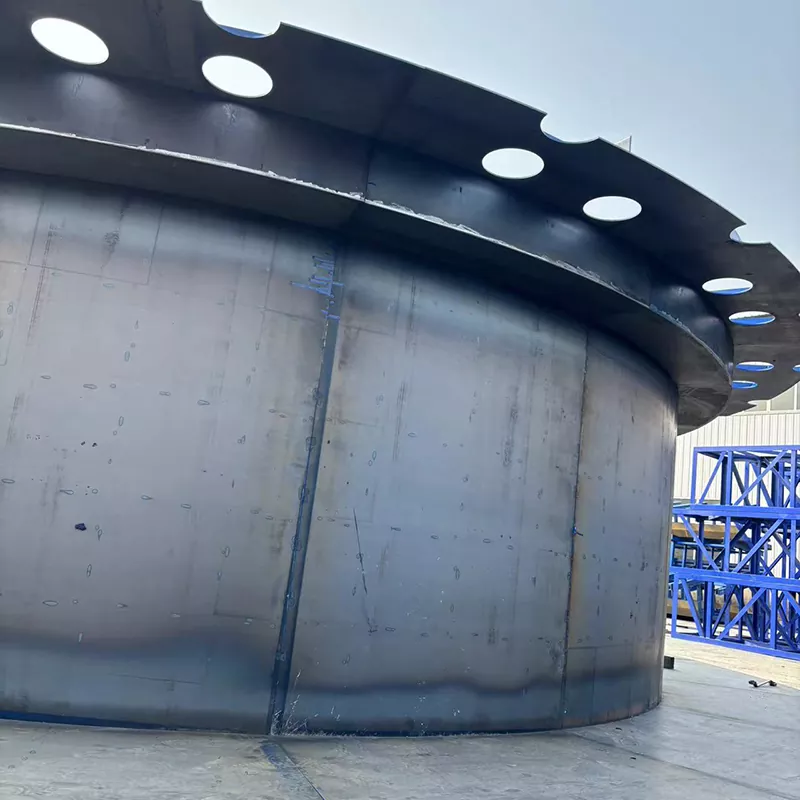

4. Precision sealing system: Raised-lowered flange joints with EPDM sealing strips ensure ≤0.3mm gap accuracy, preventing slurry leakage and eliminating post-casting surface defects.

5. Modular quick installation system: M20 bolt locking system enables fast assembly within 3–6 hours per set, improving efficiency by over 40% compared with traditional wooden formwork systems.

6. Intelligent construction support (optional): Integrated sensors and monitoring modules provide real-time data on alignment and stress distribution, improving construction precision and safety.

Applications

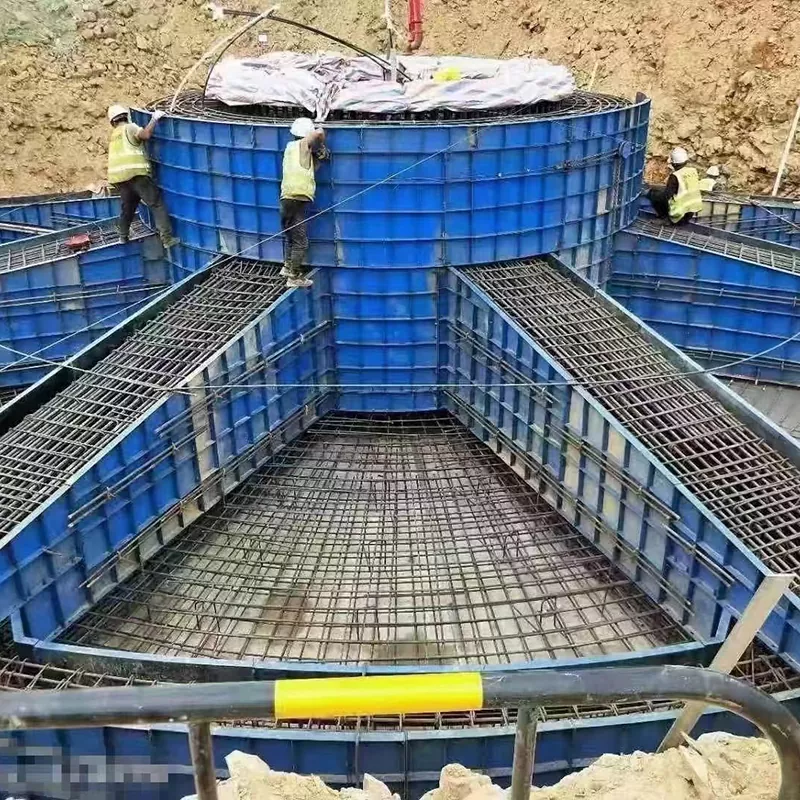

Onshore wind farms: wind turbine foundation casting for standardized power generation projects.

Offshore wind projects: segmented curved foundation formwork for large-diameter marine installations.

Desert and high-altitude wind farms: foundations designed for extreme environmental conditions.

Energy infrastructure projects: large-scale industrial concrete foundation structures.

Comparative Advantages

Compared with traditional wooden or mixed formwork systems, Xinhuixing Steel Formwork For Wind Turbine Foundation provides significantly higher strength, durability, and reuse efficiency.

It achieves up to 150–200 reuse cycles, reducing construction cost per project by approximately 50%. Installation efficiency increases by over 40%, while precision forming reduces concrete defects and eliminates secondary plastering.

The system is specifically designed for high-load, long-term wind energy infrastructure, ensuring foundation stability and operational safety of wind turbines.

Why Choose Xinhuixing Steel Formwork For Wind Turbine Foundation

Xinhuixing is a trusted China manufacturer with complete in-house production capability, covering R&D, CNC processing, welding, surface treatment, and export services.

All products undergo strict dimensional inspection, load-bearing testing, and anti-corrosion evaluation. We also provide ISO9001 and ISO14001 certifications and third-party inspection reports for global project compliance.

With extensive experience in wind power and infrastructure projects, Xinhuixing products are widely used in domestic and international wind farms, ensuring stable performance in real engineering conditions.

We also provide full technical support including installation guidance, construction planning, and on-site engineering assistance for wind turbine foundation projects.

Maintenance

Cleaning: Remove concrete residues immediately after demolding using high-pressure water and tools to maintain surface accuracy.

Inspection: Regularly inspect welds, bolts, ribs, and sealing strips every 10 uses to ensure structural integrity.

Repair: Deformed or worn areas should be corrected using alignment or welding repair methods.

Storage: Store in dry, ventilated areas with anti-rust treatment and elevated base support to prevent moisture damage.

Sustainability and Green Construction

Steel formwork significantly reduces timber consumption, saving approximately 20 cubic meters of wood per set and supporting global carbon reduction goals.

Its high reuse rate reduces construction waste and minimizes environmental pollution from concrete spillage and material loss.

After service life, steel materials are fully recyclable, supporting circular economy and green energy infrastructure development.

FAQ

Q1: What is Steel Formwork For Wind Turbine Foundation used for?
It is used for casting large concrete foundations of wind turbines in onshore and offshore wind farms.

Q2: Can the formwork be customized?
Yes. It can be fully customized for diameter, height, structure type, and turbine model requirements.

Q3: What is the service life of the system?
With proper maintenance, it can be reused 150–200 times depending on project conditions.

Q4: Is it suitable for offshore wind projects?
Yes. It supports segmented curved design and corrosion-resistant treatment for marine environments.

Q5: How does it improve construction efficiency?
Modular installation reduces assembly time to 3–6 hours per set, improving efficiency by over 40%.

Q6: What makes Xinhuixing different?
Xinhuixing provides full factory production, strict quality control, customization capability, and one-stop export service as a professional China manufacturer.
