Steel Formwork For Building Wall

Xinhuixing is a professional China manufacturer specializing in high-performance steel formwork systems. If you are looking to purchase Steel Formwork For Building Wall, Xinhuixing provides factory-direct supply with integrated design, production, and delivery services. Our Steel Formwork For Building Wall is engineered for modern construction contractors who demand efficiency, precision, and durability in large-scale building projects. By combining advanced fabrication technology, standardized production, and practical on-site construction experience, Xinhuixing delivers a wall formwork system that significantly improves construction speed, surface quality, and cost control while ensuring long-term structural stability.

What is a Steel Formwork For Building Wall?

Steel Formwork For Building Wall is a reusable modular formwork system designed specifically for concrete wall construction in residential, commercial, and public buildings. It is used to shape and support freshly poured concrete until it reaches sufficient strength. Compared with traditional timber or mixed formwork, this steel system provides higher dimensional accuracy, stronger load-bearing capacity, and a much longer service life, making it suitable for standardized and repetitive wall construction scenarios.

Core Features and Technical Advantages

Rapid installation structure: The system adopts a snap-fit assembly design optimized for building wall construction. Panels can be installed manually without welding equipment, allowing single-person operation and improving installation efficiency by more than 50% compared with traditional formwork systems.

Leak-proof precision joints: Tongue-and-groove connections with embedded sealing strips ensure a joint tolerance within ≤0.3 mm. This effectively prevents slurry leakage during pouring, producing smooth wall surfaces free from honeycombing, with flatness controlled within ≤2 mm, meeting direct plaster-free requirements.

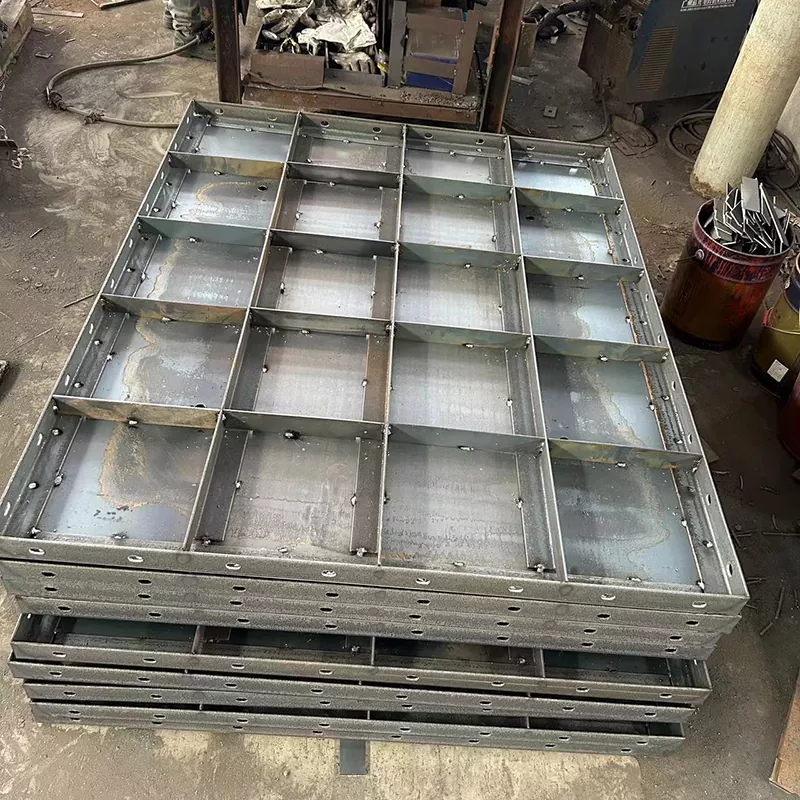

High-strength anti-deformation structure: Made from reinforced Q235B steel panels with longitudinal ribs and transverse stiffeners, the system resists lateral concrete pressure during pouring. It ensures stable wall thickness, vertical accuracy, and prevents bulging or deformation.

Lightweight and flexible handling: Each panel is optimized for manual transport without the need for large lifting equipment, making it suitable for high-rise buildings and confined construction environments.

Modular adaptability: The system supports shear walls, load-bearing walls, non-load-bearing walls, and elevator shaft walls. It can be adjusted for wall thickness ranging from 100mm to 300mm, making it suitable for residential buildings, apartments, commercial complexes, and resettlement housing projects.

Complete system solution: Xinhuixing provides a full set of accessories including support systems, tie rods, clamps, sealing strips, and connectors, enabling direct on-site installation without additional processing.

Applications

This system is widely used across multiple building construction scenarios, including:

High-rise residential buildings: shear walls, load-bearing walls, elevator shafts, and partition walls.

Commercial buildings: core tube walls, structural walls, and interior partition systems.

Resettlement housing and apartments: standardized wall construction for batch development projects.

Auxiliary building structures: underground garage walls, equipment rooms, and service areas.

Performance Comparison and Competitive Advantages

Compared with traditional wooden formwork systems, Steel Formwork For Building Wall provides significantly higher reuse cycles, typically 30–50+ uses, reducing long-term material costs. Installation efficiency is increased by over 50%, while post-pouring plastering workload can be reduced by up to 70% due to superior surface flatness.

The system also eliminates common issues such as slurry leakage, surface cracking, and structural deformation. Its modular design improves site organization, reduces waste, and supports standardized construction management, making it more suitable for modern industrialized building processes.

From a sustainability perspective, the steel structure replaces disposable wooden formwork, reducing timber consumption and construction waste, aligning with green building requirements.

Why Choose Xinhuixing?

Choosing Xinhuixing means working directly with an experienced China manufacturer with strong production capability and engineering support. Our factory is equipped with CNC production lines and standardized workshops, ensuring stable quality and fast delivery for large-scale projects.

Before shipment, all Steel Formwork For Building Wall products undergo strict testing including dimensional accuracy checks, load-bearing performance testing, and leakage resistance inspection. We also provide third-party inspection reports and factory certification to ensure compliance with construction standards.

Xinhuixing has delivered nearly 800 sets of wall formwork systems across more than 30 regions, serving multiple large construction groups. Project feedback shows wall installation time reduced from 10 days to 4 days per building, while overall labor costs decreased by approximately 35%.

We also provide full technical support including installation guidance, video tutorials, and on-site construction advice. This ensures smooth deployment, reduced rework, and improved construction safety.

In addition, Xinhuixing offers reliable after-sales service including free repair or replacement for non-human damage quality issues, ensuring long-term project stability and customer confidence.

Quality Assurance, Maintenance, and Service Life

All Steel Formwork For Building Wall products are manufactured using high-quality Q235B steel with anti-corrosion surface treatment. Each system is designed for repeated use, with a service life of 30–50 cycles or more depending on maintenance conditions.

Maintenance includes regular cleaning of concrete residues, inspection of connectors and welds, replacement of worn sealing strips, and anti-rust treatment during storage. Proper maintenance significantly extends service life and ensures consistent construction performance.

Xinhuixing also conducts 100% trial assembly before delivery to ensure precise fitting and zero leakage risk during construction.
